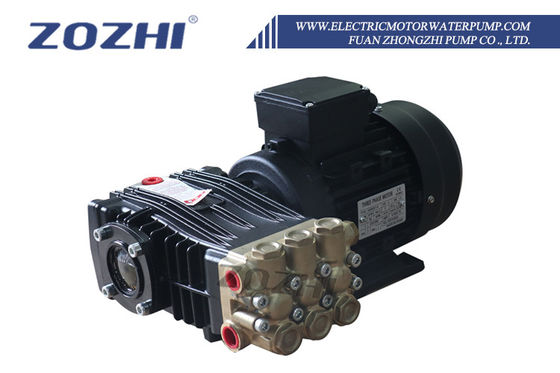

High-Efficiency 1.1KW 1.5HP 87/61mm Three-Phase Aluminium Electric Induction Motor 50Hz 24mm Hollow Shaft Waterproof Hawk Pump

Τόπος καταγωγής ΚΙΝΑ
Μάρκα ZOZHI
Πιστοποίηση CE,CCC,ISO9001
Αριθμό μοντέλου HS90S-4
Ποσότητα παραγγελίας min 2 κομμάτια
Τιμή USD87piece
Συσκευασία λεπτομέρειες Η υπόθεση CTNS/Veneer
Χρόνος παράδοσης 14 ημέρες εργασίας
Όροι πληρωμής T/t, l/c
Δυνατότητα προσφοράς 10000 κομμάτια ανά 30 ημέρες

Επικοινωνήστε μαζί μου για δωρεάν δείγματα και κουπόνια.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

skype: sales10@aixton.com

Εάν έχετε οποιαδήποτε ανησυχία, παρέχουμε 24ωρη ηλεκτρονική βοήθεια.

x
Λεπτομέρειες
Ασύγχρονη Ταχύτητα 1400rpm Κλάση μόνωσης φά
Περίφραξη IP55 Θερμοκρασία περιβάλλοντος 40 ° C
Μέγεθος πλαισίου 100 Κλάση προστασίας IP55
Χρώμα προσαρμόσιμος Εξουσία 1,5HP/1,1kW
Δασμός S1 (συνεχές) Ροπή Ψηλά
υψόμετρο ≤1000m Ονομαστική συχνότητα 50Hz/60Hz
Τύπος τοποθέτησης Πόδι που τοποθετείται
Επισημαίνω

7.5KW Hollow Shaft Motor

,

10HP Three-Phase Induction Motor

,

60Hz Frequency AC Induction Motor

Μπορείτε να σημειώσετε τα προϊόντα που χρειάζεστε και να επικοινωνήσετε μαζί μας στον πίνακα μηνυμάτων.
Αφήστε ένα μήνυμα
Περιγραφή προϊόντων
Company Profile

Fuan Zhongzhi Pump Co., Ltd.

Established in 2006, Fuan Zhongzhi Pump Co., Ltd. The trademark registration "ZOZHI" has made it a modernized private enterprise. It is specialized in scientific research, production, sales and service, manufacturing various types of pumps, such as peripheral, centrifugal, jet, deep well, sewage pump, etc., as well as high-efficiency AC motors, alternators and diesel generators.

Zhongzhi pumps are widely utilized in shallow and deep well pumping, pipeline boosting, water tower boosting, garden irrigation, agricultural irrigation, and aquaculture drainage, etc.

Zhongzhi motors can be employed for general driving purposes, such as household appliances, pumps, fans, and recording meters, etc.

Zhongzhi generators are fully applied in communication systems, data centers, mining, power, highways, engineering companies, financial systems, hotels, railways, military, airports, commercial buildings, hospitals, factories, etc. We have established a global service system in collaboration with strategic partners. Our production of generator sets has become the backup power choice for the largest number of hotels, buildings, and industrial and mining enterprises.

Zhongzhi products are popular in over 70 countries including Europe, America, the Middle East, Africa, Southeast Asia, and others.

Motivated by our slogan "Solidarity, Exploration, Honest, Faith", we strive to become the global leader in providing comprehensive and reliable solutions to make this world a better place to live in.

1.1KW 1.5HP Three-Phase Hollow Shaft Motor 60Hz Frequency 1450RPM

This industrial-grade 1.5HP AC induction motor (1.1KW) delivers reliable, high-torque performance for demanding applications. Engineered with a precise 1400RPM speed and standardized three-phase 380V/50Hz power supply, it features an integrated 24mm hollow shaft for direct-drive solutions in water pumps, gearboxes, conveyors, and various machinery requiring efficient power transmission.

Key Specifications
Brand Name ZOZHI
Type Asynchronous Motor
Phase Three phase
Frequency 50Hz/60Hz
Efficiency IE 1
Protection Class IP55
Certification CCC/CE/ISO9001
Housing Aluminium
Insulation Class Class F
Duty S1 (continuous)
Motor Bearing C&U
Flange Size 87/61mm or 75/90mm
Overall Dimensions
High-Efficiency 1.1KW 1.5HP 87/61mm Three-Phase Aluminium Electric Induction Motor 50Hz 24mm Hollow Shaft Waterproof Hawk Pump 0 High-Efficiency 1.1KW 1.5HP 87/61mm Three-Phase Aluminium Electric Induction Motor 50Hz 24mm Hollow Shaft Waterproof Hawk Pump 1
Technical Specifications
Model Power Speed (RPM) Efficiency Current (A) Weight (kg) Voltage (V) Starting Current (A)
Single Phase 50Hz/2-pole
HSL90L1-2 2.5HP/1.8KW 2850 0.95 65 50 230 12.7
HSL90L2-2 3HP/2.2KW 2840 0.99 72 60 400 13.4
HSL100L2 3HP/2.2KW 2850 0.96 74 85 400 15.3
HSL132S1-2 5.5HP/4KW 2920 0.88 86 - 400 21.8
HSL132M2-2 20HP/15KW 2920 0.87 89.2 - 400 41
Three Phase 50Hz/2-pole
HS90L1-2 3HP/2.2KW 2820 0.86 78 - 400 4.9
HS90L2-2 4HP/3KW 2820 0.80 83 - 400 8.6
HS100L1-2 4HP/3KW 2840 0.83 81 - 400 6.6
HS100L2-2 5.5HP/4KW 2850 0.86 84 - 400 11.6
HS132S1-2 7.5HP/5.5KW 2900 0.86 84 - 400 15.4
HS132M2-2 20HP/15KW 2920 0.88 86 - 400 28
Three Phase 50Hz/4-pole
HS90L1-4 2HP/1.5KW 1400 0.82 78 - 400 3.2
HS90L2-4 3HP/2.2KW 1400 0.80 81 - 400 6.9
HS100L1-4 3HP/2.2KW 1420 0.80 81 - 400 5.1
HS112M1-4 4HP/3KW 1420 0.80 82 - 400 12.4
HS132S1-4 7.5HP/5.5KW 1430 0.90 85 - 400 17.8
HS132M2-4 15HP/11KW 1430 0.90 87 - 400 26
HS160M1-4 20HP/15KW 1450 0.86 89 - 400 29
