Three-Phase 5.5KW 7.5HP Electric AC Motor 380V 50HZ 1500 RPM Explosion-Proof Enclosed Aluminium Housing 110V For AR Pump

Place of Origin	CHINA
Μάρκα	ZOZHI
Πιστοποίηση	CE,CCC,ISO9001
Model Number	HS112M2-4
Minimum Order Quantity	2pieces
Τιμή	USD155-170piece
Packaging Details	CTNS/Veneer case
Delivery Time	14work days
Payment Terms	T/T, L/C
Δυνατότητα προσφοράς	10000 κομμάτια ανά 30 ημέρες

Επικοινωνήστε μαζί μου για δωρεάν δείγματα και κουπόνια.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

skype: sales10@aixton.com

Εάν έχετε οποιαδήποτε ανησυχία, παρέχουμε 24ωρη ηλεκτρονική βοήθεια.

Λεπτομέρειες

Αφήστε ένα μήνυμα

Περιγραφή προϊόντων

Product Description

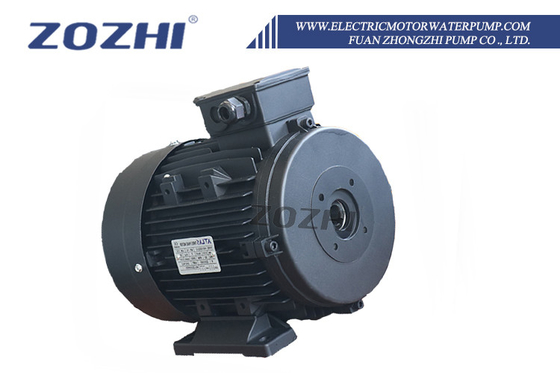

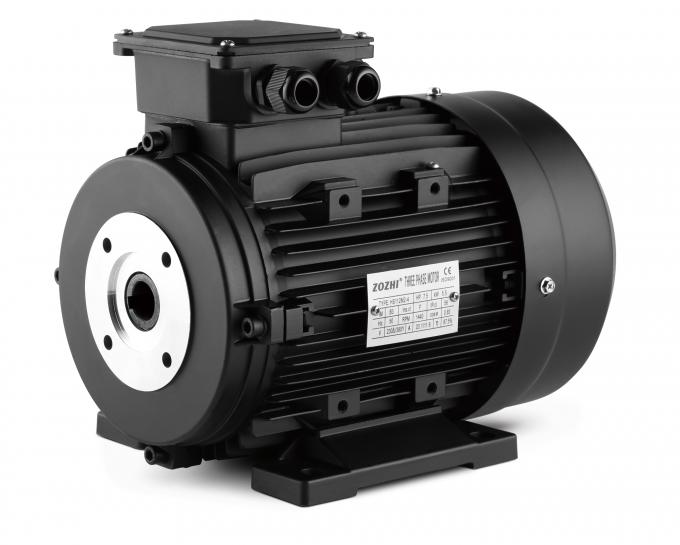

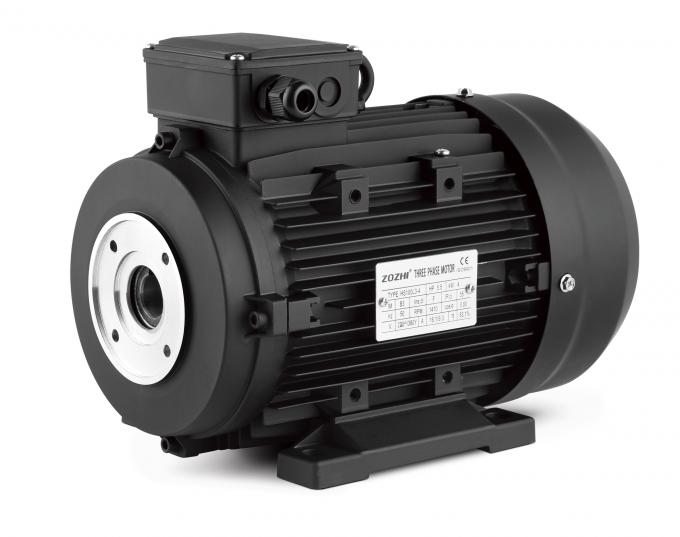

ASYNCHRONOUS HOLLOW SHAFT MOTOR

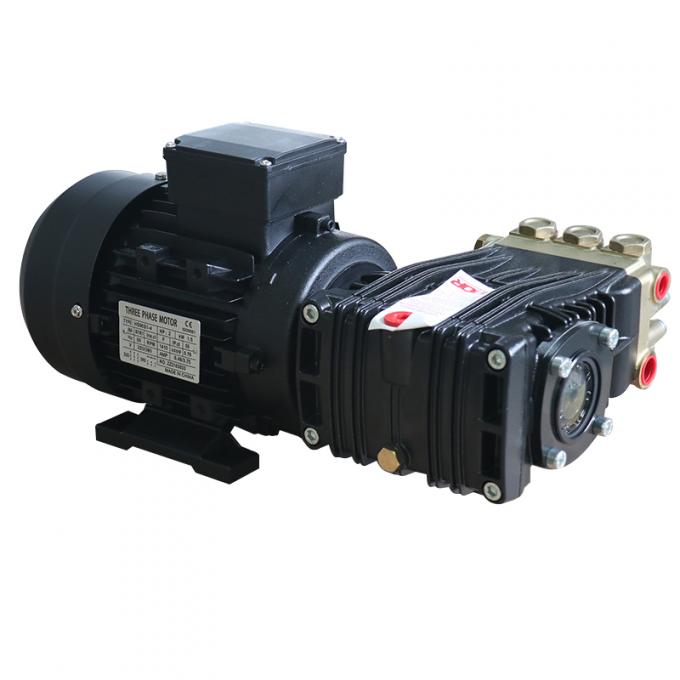

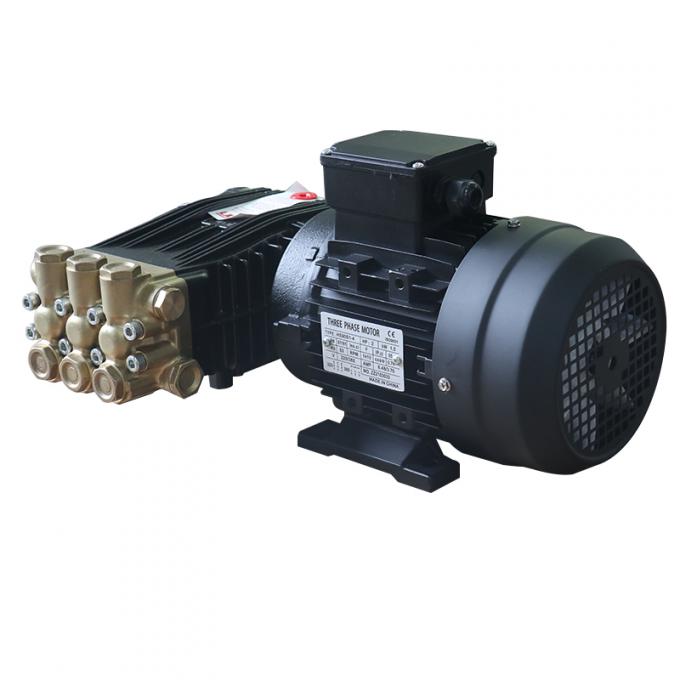

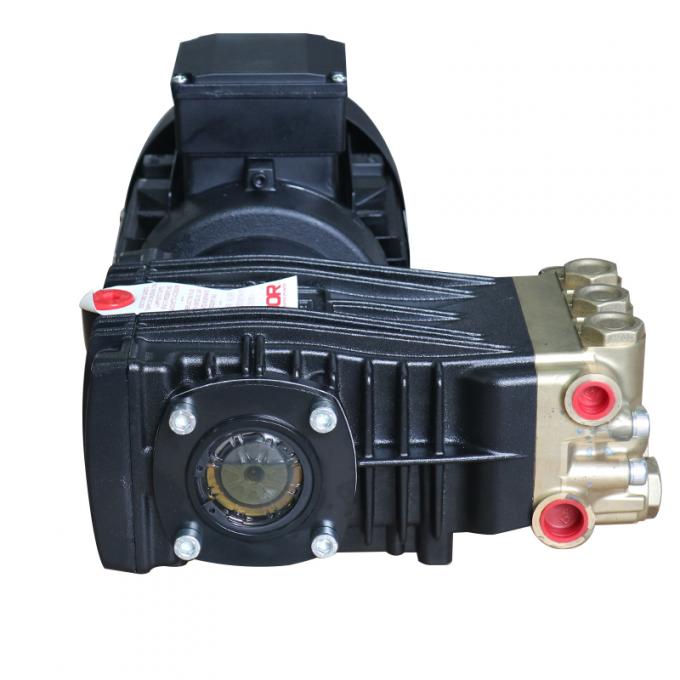

The direct coupling between motor and high-pressure pump, ideal for pressure cleaners and washing plants, significantly reduces the overall size of the machine and at the same time provides a totally reliable and cost-efficient solution

Product name	Hollow shaft electric motor HS112M2-4
Motor housing	Aluminum
Power	5.5KW/7.5HP
Installation	B3 Hollow shaft 24mm
Flange size	B3 87/61mm or 75/90mm
Bearing	C&U
Shaft	C#45
Insulation	Class F
Protection	IP55
Voltage/Frequency	Three phase 380V OR other request
Speed	1400rpm
Application	Interpump

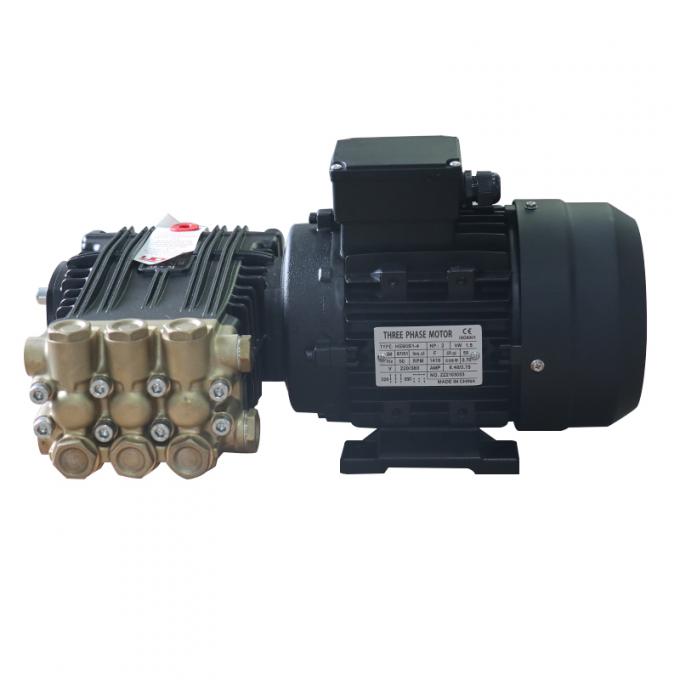

Application

Specification

FRAME	POWER KW HP		RPM	COSφ P.F.	EFF.%	CAPACITOR (UF)	VOL	AMPEREA
Single-Phase 4 Poles 3000Rpm 50Hz
711-4	0.25	0.35	1360	0.91	57	10	230	2.1
712-4	0.37	0.5	1380	0.94	65	16	230	2.6
90L1-4	1.5	2	1400	0.98	70	45	230	9.5
100L1-4	1.85	2.5	1390	0.97	68	55	230	12.2
100L2-4	2.2	3	1350	0.99	74	70	230	13.1
100L3-4	2.6	3.5	1350	0.96	74	80	230	17.5
112M1-4	3	4	1400	0.98	74	80	230	18.1
112M2-4	3.7	5	1410	0.96	76	100	230	22
Three-Phase 4 Poles 1500Rpm 50Hz
711-4	0.25	0.35	1370	0.73	64		400	0.8
712-4	0.37	0.5	1350	0.74	68		400	1.1
713-4	0.55	0.75	1350	0.75	66		400	1.6
90L1-4	1.5	2	1400	0.82	78		400	3.4
90L2-4	2.2	3	1400	0.79	77		400	5.4
90L3-4	2.6	3.5	1400	0.8	78		400	7.4
100L1-4	2.2	3	1400	0.8	81		400	5.1
100L2-4	3	4	1410	0.8	81		400	6.9
100L3-4	4	5.5	1420	0.8	82		400	9.4
100M1-4	4.4	6	1420	0.82	83		400	10
112M1-4	4	5.5	1420	0.8	83		400	9
112M2-4	5.5	7.5	1430	0.82	84		400	12.1
112M3-4	6.2	8.5	1425	0.82	84		400	13.5
112L-4	7	9.5	1430	0.8	85		400	13.8
132S1-4	5.5	7.5	1430	0.82	84		400	11.7
132S2-4	7.5	10	1430	0.84	84		400	15.4
132M1-4	9.2	12.5	1430	0.9	85		400	17.8
132M2-4	11	15	1430	0.9	87		400	21.3
132M3-4	12.5	17	1430	0.88	84		400	26
160M1-4	15	20	1450	0.86	89		400	29
160M2-4	18.5	25	1450	0.86	90		400	34

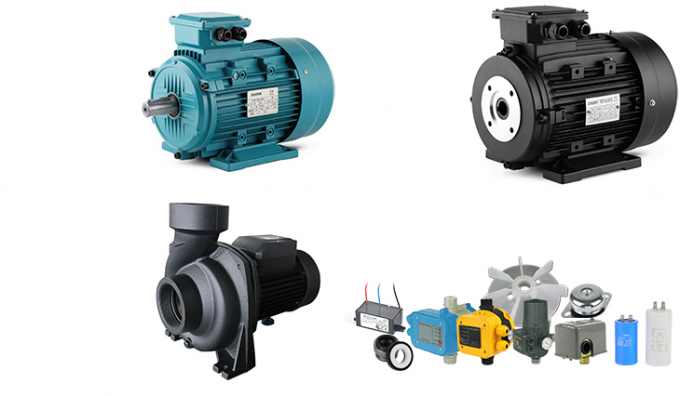

Other Products

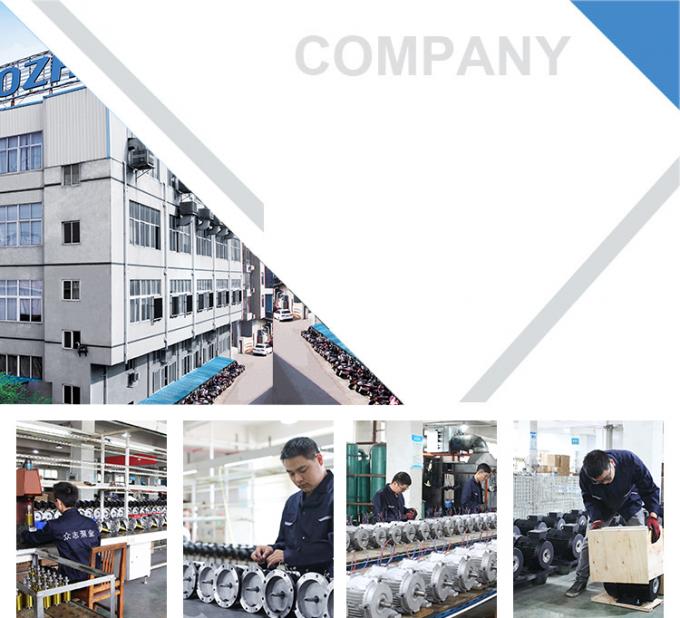

Company Profile

Fuan Zhongzhi Pump Co., Ltd

Established in 2006, Fuan Zhongzhi Pump Co., Ltd. is a modern private enterprise specializing in the research, production,sales,and service of various pumps (peripheral, centrifugal, jet, deep well, sewage) and high-efficiency AC motors, alternators,and diesel generators. Zhongzhi pumps are used for shallow and deep well pumping, pipeline boosting, water tower boosting, garden and agricultural irrigation, and aquaculture drainage. Zhongzhi motors serve general driving purposes like household appliances, pumps, fans, and recording meters. Zhongzhi generators are widely applied in communication systems, data centers, mining, power, highways, engineering companies,financial systems, hotels, railways, military, airports, commercial buildings, hospitals, and factories. We have established a global service network with strategic partners, making our generator sets the preferred backup power choice for numerous hotels,buildings, and industrial enterprises. Zhongzhi products are popular in over 70 countries across Europe, America, the Middle East, Africa, and Southeast Asia. Guided by our motto "Solidarity, Exploration, Honesty, Faith," we aim to be a global leader in providing comprehensive and reliable solutions to improve the world.
